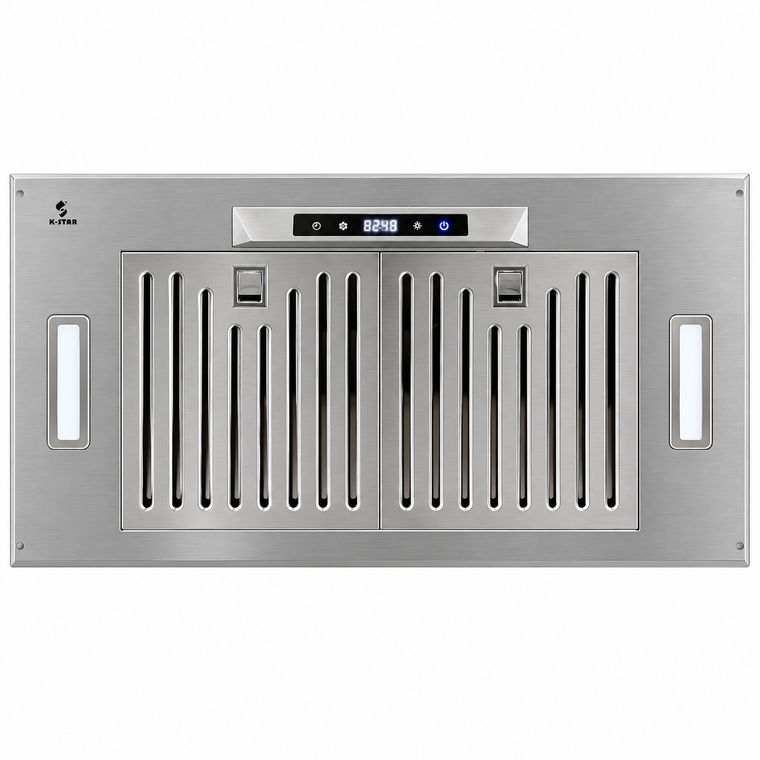

KSTAR K1035B insert range hood, underside view
Sale

KSTAR K1035B 30-inch Insert Range Hood

Availability:
All items will be shipped within 24 hours after payment is received and cleared.
$599.00 $499.00
Rated 4.5 out of 5 by 100+ customers on Trustpilot
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

Now Free Shipping!!!

All items will be shipped within 24 hours after payment is received and cleared.



Updated from the standard K1035

330W Single Chamber Ultra Quiet Strong Suction Motor

All New Gesture Control and Touch Pad



K1035B 30-inch Insert Range Hood

A 30-inch nominal-width insert range hood for a built-in enclosure. Confirm the required cutout, cabinet space and duct connection before cutting cabinetry or ordering.

Not sure this hood fits? Call (800) 893-2168 or email info@kstarus.com with your opening dimensions, existing model number, duct size and photos.

Dimension:

28.35"x14.76" (w x d)

Venting Size:

6" round duct vent exhaust and back draft damper

Airflow:

1000 CFM

Lighting:

2x2 w LED  Lights

Noise Level:

Low speed: 55dBA Max speed: 72dBA

Voltage:

120v / 60 Hz standard USA & CANADA

Motor:

330W Single Chamber Ultra Quiet

Mount Type:

Insert Under Cabinet

Speeds:

3 Speed

Keypad type:

Gesture Control and Touch Pad

Filters:

2 Dishwasher safe Stainless Steel Baffle Filters

Material:

Stainless Steel (brushed finish).

Certified:

ETL U.S. & Canada Certified

Warranty:

5 years motor from the manufacturer warranty

Optional:

Convertible to ductless operation (Requires optional re-circulating kit)

Prepare the enclosure before making a cut

  • Obtain a cutout drawing identified for the current K1035B revision.
  • Check internal enclosure width, depth and height as well as the visible opening.
  • Allow for the specified duct connection, electrical access and service access; confirm whether a liner is required.

Order contents and care

Confirm the supplied components against the exact order configuration. Treat extensions, conversion parts and replacement filters as separate decisions unless they are expressly included. Follow the current model instructions for filter removal, cleaning and routine care.

Questions about K1035B

Can I cut a nominal 30-inch opening?

Do not use the nominal model size as the cutout. The opening must follow the verified installation drawing for the exact insert.

Does the insert listing include a finished decorative enclosure?

Confirm the order contents separately. Plan the enclosure and any liner from the installation requirements rather than assuming they come with the hood.

Browse insert range hoods. Find the matching document in KSTAR product manuals, or send a model-specific fit question.

Warranty
5 years motor from the manufacturer warranty.
