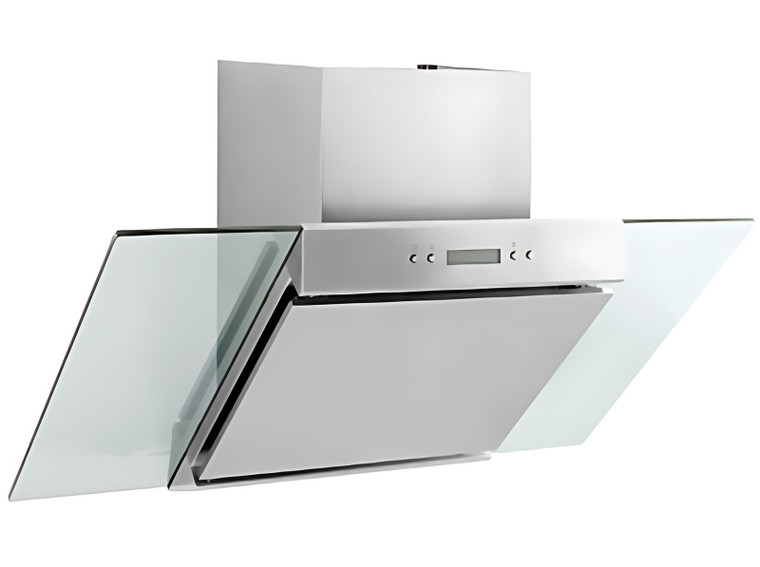

K1022 30-inch Wall-Mount Range Hood - K-Star

Range HoodsWall Mounted Range Hoods

K1022 30-inch Wall-Mount Range Hood - K-Star

Availability:
In-stock orders ship within 24 hours on weekdays, excluding holidays.
$959.00 $649.00
  • Width30 in
  • Airflow860 CFM
  • Duct6 in round
  • Noise46–64 dBA
  • FiltersAluminum mesh
  • ControlsTouch
Condition:
New
Current Stock:
  • Free shipping to the contiguous U.S. In-stock orders placed by 12 pm Pacific on weekdays (excluding holidays) ship the same day. Most U.S. orders arrive within 5 business days. Shipping & returns
  • See it in person. Visit our showroom at 9329 Klingerman St, South El Monte, CA, Monday to Friday, 8:30 am to 4:00 pm.
  • 5-year motor, 1-year parts warranty. Warranty details · Register your product
  • Not sure it fits? Call (800) 893-2168 or email info@kstarus.com with the model number, your measurements and a photo.

In-stock orders ship within 24 hours on weekdays, excluding holidays.

K-1022  30" Wall Mounted Range Hood

Dimension:

30"x14" (w x d)

Chimney Height:

Telescopic Chimney Fits 7ft to 9ft Ceiling.

Venting Size:

6" round duct vent exhaust and back draft damper

Airflow:

860 CFM

Lighting:

2x3 w Halogen Lights

Noise Level:

Low speed: 46dBA Max speed: 64dBA

Voltage:

120v / 60 Hz standard USA & CANADA

Motor:

220W Single Chamber Ultra Quiet

Mount Type:

Wall Mount

Speeds:

3 Speed

Keypad type:

Touch sensitive control panel LCD display with clock.Delayed power auto shut off (Programmable in 5,15, 30 minutes

Filters:

1 Dishwasher safe aluminum 5 layers micro-cell grease filters

Material:

Stainless steel (Brushed Finish). Tempered glass canopy

Certified:

UL/TUV  U.S. & Canada Certified

Warranty:

5 years motor from the manufacturer warranty

Optional:

Convertible to ductless operation (Requires optional re- circulating kit)

Comes with all parts you need for very EASY installation:  filters, damper, installation kit, manual.

K1022 is the nominal 30-inch wall-mount listing. Use its exact installation drawing when comparing it with the wider K1022A.

Check the body and service access

  • Measure wall width, ceiling height and the planned space above the cooking surface.
  • Check the route for the duct and electrical connection.
  • Confirm that filters and service components remain accessible in the finished installation.

Order contents and care

Confirm the supplied components against the exact order configuration. Treat extensions, conversion parts and replacement filters as separate decisions unless they are expressly included. Follow the current model instructions for filter removal, cleaning and routine care.

Questions about K1022

Does K1022A use the same installation opening?

Use separate model drawings; a wider nominal size should not be treated as the same body or mounting layout.

How do I choose a future replacement filter?

Use the full installed model number and a photo and measurement of the existing filter before selecting a part.

Browse wall-mount range hoods. Find the matching document in K-Star product manuals, or send a model-specific fit question.
