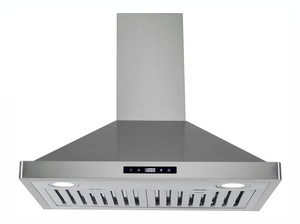

KSTAR K1016B wall-mounted range hood, front-left view

KSTAR K1016B 30-inch Wall-Mount Range Hood

$799.00 $699.00
  • Width30 in
  • Airflow1000 CFM
  • Duct6 in round
  • Noise55–72 dBA
  • FiltersBaffle
  • ControlsGesture + touch
Current Stock:
  • Free shipping to the contiguous U.S. In-stock orders placed by 12 pm Pacific on weekdays (excluding holidays) ship the same day. Most U.S. orders arrive within 5 business days. Shipping & returns
  • See it in person. Visit our showroom at 9329 Klingerman St, South El Monte, CA, Monday to Friday, 8:30 am to 4:00 pm.
  • 5-year motor, 1-year parts warranty. Warranty details · Register your product
  • Not sure it fits? Call (800) 893-2168 or email info@kstarus.com with the model number, your measurements and a photo.

In-stock orders ship within 24 hours on weekdays, excluding holidays.

330W Single Chamber Ultra Quiet Strong Suction Motor

All New Gesture Control and Touch Pad

K1016B  30" Wall Mounted Range Hood (Baffle Filter)

Dimension:

30"x21.4" (w x d)

Chimney Height:

Telescopic Chimney Fits 8ft ceiling.

Venting Size:

6" round duct vent exhaust and back draft damper

Airflow:

1000 CFM

Lighting:

2x2 w LED  Lights

Noise Level:

Low speed: 55dBA Max speed: 72dBA

Voltage:

120v / 60 Hz standard USA & CANADA

Motor:

330W Single Chamber Ultra Quiet

Mount Type:

Wall Mount

Speeds:

3 Speed

Keypad type:

Gesture Control and Touch Pad

Filters:

2 Dishwasher safe Stainless Steel Baffle Filters.

Material:

Stainless steel (brushed finish).

Certified:

ETL U.S. & Canada Certified

Warranty:

5 years motor from the manufacturer warranty

Optional:

Convertible to ductless operation (Requires optional re-circulating kit)

The K1016B is the nominal 30-inch wall-mount listing in this catalog. Use it as the starting point for a wall installation, then match the current revision and chimney arrangement to your kitchen.

Compare the complete wall installation

  • Measure the available wall width and depth around the cooking surface.
  • Record the ceiling and cooking-surface heights for a chimney-fit check.
  • Use the current K1016B document when checking mounting points, duct position and service access.

Order contents and care

Confirm the supplied components against the exact order configuration. Treat extensions, conversion parts and replacement filters as separate decisions unless they are expressly included. Follow the current model instructions for filter removal, cleaning and routine care.

Questions about K1016B

Can I use the K1016AB URL as proof of a wider equivalent?

No. Match the complete model on the product plate and order. A similar URL or family name does not establish an equivalent revision.

What should I check in the carton?

Compare the delivered model and packing list with your order before installation. Confirm any required chimney and mounting components before work begins.

Browse wall-mount range hoods. Find the matching document in KSTAR product manuals, or send a model-specific fit question.
