K1017AB 36-inch Wall-Mount Range Hood with Baffle Filters - K-Star

Availability:
In-stock orders ship within 24 hours on weekdays, excluding holidays.
$849.00 $549.00
  • Width36 in
  • Airflow860 CFM
  • Duct6 in round
  • Noise46–64 dBA
  • FiltersBaffle
  • ControlsElectronic buttons
Condition:
New
Current Stock:
  • Free shipping to the contiguous U.S. In-stock orders placed by 12 pm Pacific on weekdays (excluding holidays) ship the same day. Most U.S. orders arrive within 5 business days. Shipping & returns
  • See it in person. Visit our showroom at 9329 Klingerman St, South El Monte, CA, Monday to Friday, 8:30 am to 4:00 pm.
  • 5-year motor, 1-year parts warranty. Warranty details · Register your product
  • Not sure it fits? Call (800) 893-2168 or email info@kstarus.com with the model number, your measurements and a photo.

In-stock orders ship within 24 hours on weekdays, excluding holidays.

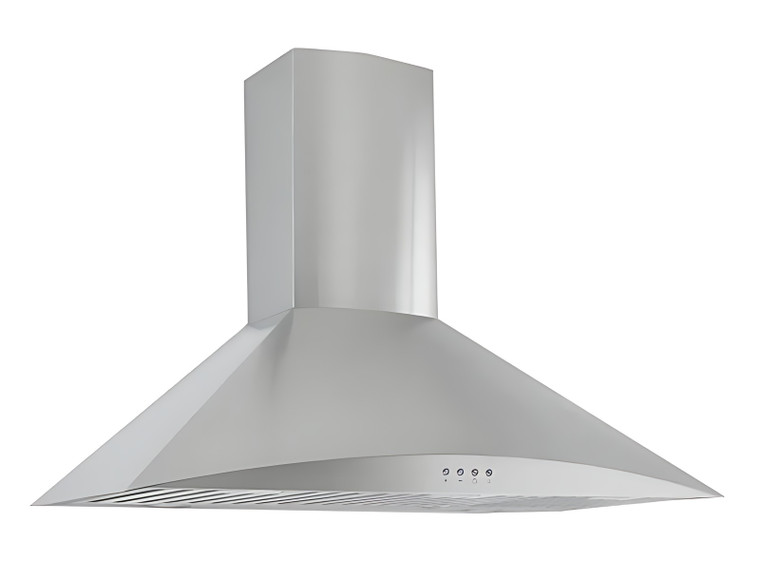

K1017A-B  36" Wall Mounted Range Hood (Baffle Filter)

Dimension:

36"x18.3" (w x d)

Chimney Height:

Telescopic Chimney Fits 8ft to 9ft ceiling.

Venting Size:

6" round duct vent exhaust and back draft damper

Airflow:

860 CFM

Lighting:

2x3W LED Lights

Noise Level:

Low speed: 46dBA Max speed: 64dBA

Voltage:

120v / 60 Hz standard USA & CANADA

Motor:

220W Single Chamber Ultra Quiet

Mount Type:

Wall Mount

Speeds:

3 Speed

Keypad type:

Electronic Button with LED and Timer. Delayed power automatic shut off.

Filters:

3 Dishwasher safe Stainless Steel Baffle filters

Material:

Stainless steel (brushed finish).

Certified:

UL  U.S. & Canada Certified

Warranty:

5 years motor from the manufacture warranty

Optional:

Convertible to ductless operation (Requires optional re- circulating kit)

Comes with all parts you need for very EASY installation:  filters, damper, installation kit, manual.

K1017AB is the nominal 36-inch wall-mount listing. Keep the AB suffix when checking installation instructions and replacement parts.

Verify the AB configuration

  • Measure the available wall and chimney space.
  • Confirm the current control and filter layout and the mounting components supplied.
  • Check that the manual explicitly covers the AB revision before using its dimensions.

Order contents and care

Confirm the supplied components against the exact order configuration. Treat extensions, conversion parts and replacement filters as separate decisions unless they are expressly included. Follow the current model instructions for filter removal, cleaning and routine care.

Questions about K1017AB

Can I use the K1017A manual automatically?

Confirm coverage for K1017AB first. A neighboring model in the manual directory is not enough to establish revision compatibility.

What should I retain after installation?

Keep the order record, model-plate photo, matched manual and part identifiers for future service questions.
